6.3. Frames

All frame-related classes for video, depth, IMU, and point cloud data.

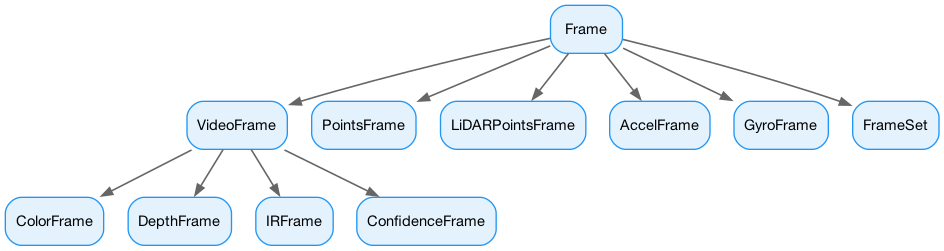

6.3.1. Class Hierarchy

The Frame class is the base class for all frame types.

digraph FrameHierarchy {
rankdir=TB;
bgcolor=transparent;
node [shape=box, style="filled,rounded", fillcolor="#e3f2fd", color="#2196f3", fontname="Helvetica Neue, Helvetica, Arial, sans-serif", fontsize=11];
edge [color="#666666", arrowsize=0.8, penwidth=1.2];

Frame [label="Frame"];
VideoFrame [label="VideoFrame"];
ColorFrame [label="ColorFrame"];
DepthFrame [label="DepthFrame"];
IRFrame [label="IRFrame"];
ConfidenceFrame [label="ConfidenceFrame"];
PointsFrame [label="PointsFrame"];
LiDARPointsFrame [label="LiDARPointsFrame"];
AccelFrame [label="AccelFrame"];
GyroFrame [label="GyroFrame"];
FrameSet [label="FrameSet"];

Frame -> VideoFrame;
Frame -> PointsFrame;
Frame -> LiDARPointsFrame;
Frame -> AccelFrame;
Frame -> GyroFrame;
Frame -> FrameSet;
VideoFrame -> ColorFrame;
VideoFrame -> DepthFrame;
VideoFrame -> IRFrame;
VideoFrame -> ConfidenceFrame;
}

6.3.2. Inheritance Overview

Class Inheritance Hierarchy
Class	Inherits From	Description
`Frame`	object	Base class for all frame types
`VideoFrame`	`Frame`	Base class for video frames
`ColorFrame`	`VideoFrame`	Color image frame
`DepthFrame`	`VideoFrame`	Depth image frame
`IRFrame`	`VideoFrame`	Infrared image frame
`ConfidenceFrame`	`VideoFrame`	Confidence frame
`PointsFrame`	`Frame`	Point cloud frame
`LiDARPointsFrame`	`Frame`	LiDAR point cloud frame
`AccelFrame`	`Frame`	Accelerometer frame
`GyroFrame`	`Frame`	Gyroscope frame
`FrameSet`	`Frame`	Collection of synchronized frames

6.3.3. Classes

6.3.3.1. Frame

class pyorbbecsdk.Frame

Bases: pybind11_object

__init__(*args, **kwargs)

as_accel_frame(self: pyorbbecsdk.Frame) → ob::AccelFrame

as_color_frame(self: pyorbbecsdk.Frame) → ob::ColorFrame

as_confidence_frame(self: pyorbbecsdk.Frame) → ob::ConfidenceFrame

as_depth_frame(self: pyorbbecsdk.Frame) → ob::DepthFrame

as_frame_set(self: pyorbbecsdk.Frame) → ob::FrameSet

as_gyro_frame(self: pyorbbecsdk.Frame) → ob::GyroFrame

as_ir_frame(self: pyorbbecsdk.Frame) → ob::IRFrame

as_lidar_points_frame(self: pyorbbecsdk.Frame) → ob::LiDARPointsFrame

as_points_frame(self: pyorbbecsdk.Frame) → ob::PointsFrame

as_video_frame(self: pyorbbecsdk.Frame) → ob::VideoFrame: DISCOURAGED: This method is rarely needed in normal usage.

copy_frame_info(self: pyorbbecsdk.Frame, arg0: pyorbbecsdk.Frame) → None

get_data(self: pyorbbecsdk.Frame) → numpy.typing.NDArray[numpy.uint8]

get_data_pointer(self: pyorbbecsdk.Frame) → object

get_data_size(self: pyorbbecsdk.Frame) → int

get_device(self: pyorbbecsdk.Frame) → pyorbbecsdk.Device

get_format(self: pyorbbecsdk.Frame) → pyorbbecsdk.OBFormat

get_global_timestamp_us(self: pyorbbecsdk.Frame) → int

get_index(self: pyorbbecsdk.Frame) → int

get_metadata_value(self: pyorbbecsdk.Frame, arg0: pyorbbecsdk.OBFrameMetadataType) → int

get_sensor(self: pyorbbecsdk.Frame) → pyorbbecsdk.Sensor

get_stream_profile(self: pyorbbecsdk.Frame) → pyorbbecsdk.StreamProfile

get_system_timestamp(self: pyorbbecsdk.Frame) → int

get_system_timestamp_us(self: pyorbbecsdk.Frame) → int

get_timestamp(self: pyorbbecsdk.Frame) → int: Get the hardware timestamp of the frame in milliseconds

get_timestamp_us(self: pyorbbecsdk.Frame) → int

get_type(self: pyorbbecsdk.Frame) → pyorbbecsdk.OBFrameType

has_metadata(self: pyorbbecsdk.Frame, arg0: pyorbbecsdk.OBFrameMetadataType) → bool

set_stream_profile(self: pyorbbecsdk.Frame, arg0: pyorbbecsdk.StreamProfile) → None

set_system_timestamp_us(self: pyorbbecsdk.Frame, arg0: SupportsInt | SupportsIndex) → None

update_data(self: pyorbbecsdk.Frame, arg0: typing_extensions.Buffer) → None

update_metadata(self: pyorbbecsdk.Frame, arg0: typing_extensions.Buffer) → None

6.3.3.2. VideoFrame

class pyorbbecsdk.VideoFrame

Bases: Frame

__init__(*args, **kwargs)

as_color_frame(self: pyorbbecsdk.VideoFrame) → ob::ColorFrame

as_confidence_frame(self: pyorbbecsdk.VideoFrame) → ob::ConfidenceFrame

as_depth_frame(self: pyorbbecsdk.VideoFrame) → ob::DepthFrame

as_ir_frame(self: pyorbbecsdk.VideoFrame) → ob::IRFrame

as_points_frame(self: pyorbbecsdk.VideoFrame) → ob::PointsFrame

get_height(self: pyorbbecsdk.VideoFrame) → int

get_metadata(self: pyorbbecsdk.VideoFrame) → numpy.typing.NDArray[numpy.uint8]

get_metadata_size(self: pyorbbecsdk.VideoFrame) → int

get_pixel_available_bit_size(self: pyorbbecsdk.VideoFrame) → int

get_pixel_type(self: pyorbbecsdk.VideoFrame) → pyorbbecsdk.OBPixelType

get_width(self: pyorbbecsdk.VideoFrame) → int

set_pixel_available_bit_size(self: pyorbbecsdk.VideoFrame, arg0: SupportsInt | SupportsIndex) → None

set_pixel_type(self: pyorbbecsdk.VideoFrame, arg0: pyorbbecsdk.OBPixelType) → None

6.3.3.3. ColorFrame

class pyorbbecsdk.ColorFrame

Bases: VideoFrame

__init__(*args, **kwargs)

6.3.3.4. DepthFrame

class pyorbbecsdk.DepthFrame

Bases: VideoFrame

__init__(*args, **kwargs)

get_depth_scale(self: pyorbbecsdk.DepthFrame) → float

set_value_scale(self: pyorbbecsdk.DepthFrame, arg0: SupportsFloat | SupportsIndex) → None

6.3.3.5. IRFrame

class pyorbbecsdk.IRFrame

Bases: VideoFrame

__init__(*args, **kwargs)

6.3.3.6. ConfidenceFrame

class pyorbbecsdk.ConfidenceFrame

Bases: VideoFrame

__init__(*args, **kwargs)

6.3.3.7. PointsFrame

class pyorbbecsdk.PointsFrame

Bases: Frame

__init__(*args, **kwargs)

get_height(self: pyorbbecsdk.PointsFrame) → int

get_position_value_scale(self: pyorbbecsdk.PointsFrame) → float

get_width(self: pyorbbecsdk.PointsFrame) → int

6.3.3.8. LiDARPointsFrame

class pyorbbecsdk.LiDARPointsFrame

Bases: Frame

__init__(*args, **kwargs)

6.3.3.9. AccelFrame

class pyorbbecsdk.AccelFrame

Bases: Frame

__init__(*args, **kwargs)

get_temperature(self: pyorbbecsdk.AccelFrame) → float

get_value(self: pyorbbecsdk.AccelFrame) → pyorbbecsdk.OBAccelValue

get_x(self: pyorbbecsdk.AccelFrame) → float

get_y(self: pyorbbecsdk.AccelFrame) → float

get_z(self: pyorbbecsdk.AccelFrame) → float

6.3.3.10. GyroFrame

class pyorbbecsdk.GyroFrame

Bases: Frame

__init__(*args, **kwargs)

get_temperature(self: pyorbbecsdk.GyroFrame) → float

get_value(self: pyorbbecsdk.GyroFrame) → pyorbbecsdk.OBAccelValue

get_x(self: pyorbbecsdk.GyroFrame) → float

get_y(self: pyorbbecsdk.GyroFrame) → float

get_z(self: pyorbbecsdk.GyroFrame) → float

6.3.3.11. FrameSet

class pyorbbecsdk.FrameSet

Bases: Frame

__init__(*args, **kwargs)

get_accel_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.AccelFrame

get_color_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.ColorFrame

get_confidence_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.ConfidenceFrame

get_count(self: pyorbbecsdk.FrameSet) → int

get_depth_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.DepthFrame

get_frame(self: pyorbbecsdk.FrameSet, arg0: pyorbbecsdk.OBFrameType) → pyorbbecsdk.Frame

get_frame_by_index(self: pyorbbecsdk.FrameSet, arg0: SupportsInt | SupportsIndex) → pyorbbecsdk.Frame

get_frame_by_type(self: pyorbbecsdk.FrameSet, arg0: pyorbbecsdk.OBFrameType) → pyorbbecsdk.Frame

get_frame_count(self: pyorbbecsdk.FrameSet) → int

get_gyro_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.GyroFrame

get_ir_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.IRFrame

get_left_color_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.ColorFrame

get_left_ir_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.IRFrame

get_lidar_points_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.LiDARPointsFrame

get_points_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.PointsFrame

get_right_color_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.ColorFrame

get_right_ir_frame(self: pyorbbecsdk.FrameSet) → pyorbbecsdk.IRFrame

push_frame(self: pyorbbecsdk.FrameSet, arg0: pyorbbecsdk.Frame) → None

6.3.4. Enumerations

6.3.4.1. OBFrameType

class pyorbbecsdk.OBFrameType

Bases: pybind11_object

OBFrameType Members
Name	C++ Binding Object	Value	Description
`ACCEL_FRAME`	`<OBFrameType.ACCEL_FRAME: 4>`	4	Auto-generated from C++ bindings
`COLOR_FRAME`	`<OBFrameType.COLOR_FRAME: 2>`	2	Auto-generated from C++ bindings
`CONFIDENCE_FRAME`	`<OBFrameType.CONFIDENCE_FRAME: 11>`	11	Auto-generated from C++ bindings
`DEPTH_FRAME`	`<OBFrameType.DEPTH_FRAME: 3>`	3	Auto-generated from C++ bindings
`FRAME_SET`	`<OBFrameType.FRAME_SET: 5>`	5	Auto-generated from C++ bindings
`GYRO_FRAME`	`<OBFrameType.GYRO_FRAME: 7>`	7	Auto-generated from C++ bindings
`IR_FRAME`	`<OBFrameType.IR_FRAME: 1>`	1	Auto-generated from C++ bindings
`LEFT_COLOR_FRAME`	`<OBFrameType.LEFT_COLOR_FRAME: 13>`	13	Auto-generated from C++ bindings
`LEFT_IR_FRAME`	`<OBFrameType.LEFT_IR_FRAME: 8>`	8	Auto-generated from C++ bindings
`LIDAR_POINTS_FRAME`	`<OBFrameType.LIDAR_POINTS_FRAME: 12>`	12	Auto-generated from C++ bindings
`RAW_PHASE_FRAME`	`<OBFrameType.RAW_PHASE_FRAME: 10>`	10	Auto-generated from C++ bindings
`RIGHT_COLOR_FRAME`	`<OBFrameType.RIGHT_COLOR_FRAME: 14>`	14	Auto-generated from C++ bindings
`RIGHT_IR_FRAME`	`<OBFrameType.RIGHT_IR_FRAME: 9>`	9	Auto-generated from C++ bindings
`TYPE_COUNT_FRAME`	`<OBFrameType.TYPE_COUNT_FRAME: 15>`	15	Auto-generated from C++ bindings
`UNKNOWN_FRAME`	`<OBFrameType.UNKNOWN_FRAME: -1>`	-1	Auto-generated from C++ bindings
`VIDEO_FRAME`	`<OBFrameType.VIDEO_FRAME: 0>`	0	Auto-generated from C++ bindings

6.3.4.2. OBFrameMetadataType

class pyorbbecsdk.OBFrameMetadataType

Bases: pybind11_object

OBFrameMetadataType Members
Name	C++ Binding Object	Value	Description
`ACTUAL_FRAME_RATE`	`<OBFrameMetadataType.ACTUAL_FRAME_RATE: 18>`	18	Auto-generated from C++ bindings
`AE_ROI_BOTTOM`	`<OBFrameMetadataType.AE_ROI_BOTTOM: 23>`	23	Auto-generated from C++ bindings
`AE_ROI_LEFT`	`<OBFrameMetadataType.AE_ROI_LEFT: 20>`	20	Auto-generated from C++ bindings
`AE_ROI_RIGHT`	`<OBFrameMetadataType.AE_ROI_RIGHT: 22>`	22	Auto-generated from C++ bindings
`AE_ROI_TOP`	`<OBFrameMetadataType.AE_ROI_TOP: 21>`	21	Auto-generated from C++ bindings
`AUTO_EXPOSURE`	`<OBFrameMetadataType.AUTO_EXPOSURE: 3>`	3	Auto-generated from C++ bindings
`AUTO_WHITE_BALANCE`	`<OBFrameMetadataType.AUTO_WHITE_BALANCE: 6>`	6	Auto-generated from C++ bindings
`BRIGHTNESS`	`<OBFrameMetadataType.BRIGHTNESS: 8>`	8	Auto-generated from C++ bindings
`CONTRAST`	`<OBFrameMetadataType.CONTRAST: 9>`	9	Auto-generated from C++ bindings
`COUNT`	`<OBFrameMetadataType.COUNT: 34>`	34	Auto-generated from C++ bindings
`EXPOSURE`	`<OBFrameMetadataType.EXPOSURE: 4>`	4	Auto-generated from C++ bindings
`EXPOSURE_PRIORITY`	`<OBFrameMetadataType.EXPOSURE_PRIORITY: 24>`	24	Auto-generated from C++ bindings
`FRAME_NUMBER`	`<OBFrameMetadataType.FRAME_NUMBER: 2>`	2	Auto-generated from C++ bindings
`FRAME_RATE`	`<OBFrameMetadataType.FRAME_RATE: 19>`	19	Auto-generated from C++ bindings
`GAIN`	`<OBFrameMetadataType.GAIN: 5>`	5	Auto-generated from C++ bindings
`GAMMA`	`<OBFrameMetadataType.GAMMA: 14>`	14	Auto-generated from C++ bindings
`GPIO_INPUT_DATA`	`<OBFrameMetadataType.GPIO_INPUT_DATA: 31>`	31	Auto-generated from C++ bindings
`HDR_SEQUENCE_INDEX`	`<OBFrameMetadataType.HDR_SEQUENCE_INDEX: 27>`	27	Auto-generated from C++ bindings
`HDR_SEQUENCE_NAME`	`<OBFrameMetadataType.HDR_SEQUENCE_NAME: 25>`	25	Auto-generated from C++ bindings
`HDR_SEQUENCE_SIZE`	`<OBFrameMetadataType.HDR_SEQUENCE_SIZE: 26>`	26	Auto-generated from C++ bindings
`HUE`	`<OBFrameMetadataType.HUE: 13>`	13	Auto-generated from C++ bindings
`LASER_POWER`	`<OBFrameMetadataType.LASER_POWER: 28>`	28	Auto-generated from C++ bindings
`LASER_POWER_LEVEL`	`<OBFrameMetadataType.LASER_POWER_LEVEL: 29>`	29	Auto-generated from C++ bindings
`LASER_STATUS`	`<OBFrameMetadataType.LASER_STATUS: 30>`	30	Auto-generated from C++ bindings
`MANUAL_WHITE_BALANCE`	`<OBFrameMetadataType.MANUAL_WHITE_BALANCE: 17>`	17	Auto-generated from C++ bindings
`POWER_LINE_FREQUENCY`	`<OBFrameMetadataType.POWER_LINE_FREQUENCY: 15>`	15	Auto-generated from C++ bindings
`SATURATION`	`<OBFrameMetadataType.SATURATION: 10>`	10	Auto-generated from C++ bindings
`SENSOR_TIMESTAMP`	`<OBFrameMetadataType.SENSOR_TIMESTAMP: 1>`	1	Auto-generated from C++ bindings
`SHARPNESS`	`<OBFrameMetadataType.SHARPNESS: 11>`	11	Auto-generated from C++ bindings
`TIMESTAMP`	`<OBFrameMetadataType.TIMESTAMP: 0>`	0	Auto-generated from C++ bindings
`WHITE_BALANCE`	`<OBFrameMetadataType.WHITE_BALANCE: 7>`	7	Auto-generated from C++ bindings

6.3.4.3. OBFormat

class pyorbbecsdk.OBFormat

Bases: pybind11_object

OBFormat Members
Name	C++ Binding Object	Value	Description
`ACCEL`	`<OBFormat.ACCEL: 16>`	16	Auto-generated from C++ bindings
`BA81`	`<OBFormat.BA81: 30>`	30	Auto-generated from C++ bindings
`BGR`	`<OBFormat.BGR: 23>`	23	Auto-generated from C++ bindings
`BGRA`	`<OBFormat.BGRA: 25>`	25	Auto-generated from C++ bindings
`BYR2`	`<OBFormat.BYR2: 32>`	32	Auto-generated from C++ bindings
`COMPRESSED`	`<OBFormat.COMPRESSED: 26>`	26	Auto-generated from C++ bindings
`GRAY`	`<OBFormat.GRAY: 13>`	13	Auto-generated from C++ bindings
`GYRO`	`<OBFormat.GYRO: 17>`	17	Auto-generated from C++ bindings
`H264`	`<OBFormat.H264: 6>`	6	Auto-generated from C++ bindings
`H265`	`<OBFormat.H265: 7>`	7	Auto-generated from C++ bindings
`HEVC`	`<OBFormat.HEVC: 14>`	14	Auto-generated from C++ bindings
`I420`	`<OBFormat.I420: 15>`	15	Auto-generated from C++ bindings
`LIDAR_CALIBRATION`	`<OBFormat.LIDAR_CALIBRATION: 38>`	38	Auto-generated from C++ bindings
`LIDAR_POINT`	`<OBFormat.LIDAR_POINT: 35>`	35	Auto-generated from C++ bindings
`LIDAR_SCAN`	`<OBFormat.LIDAR_SCAN: 37>`	37	Auto-generated from C++ bindings
`LIDAR_SPHERE_POINT`	`<OBFormat.LIDAR_SPHERE_POINT: 36>`	36	Auto-generated from C++ bindings
`MJPG`	`<OBFormat.MJPG: 5>`	5	Auto-generated from C++ bindings
`NV12`	`<OBFormat.NV12: 3>`	3	Auto-generated from C++ bindings
`NV21`	`<OBFormat.NV21: 4>`	4	Auto-generated from C++ bindings
`POINT`	`<OBFormat.POINT: 19>`	19	Auto-generated from C++ bindings
`RGB`	`<OBFormat.RGB: 22>`	22	Auto-generated from C++ bindings
`RGBA`	`<OBFormat.RGBA: 31>`	31	Auto-generated from C++ bindings
`RGB_POINT`	`<OBFormat.RGB_POINT: 20>`	20	Auto-generated from C++ bindings
`RLE`	`<OBFormat.RLE: 21>`	21	Auto-generated from C++ bindings
`RVL`	`<OBFormat.RVL: 27>`	27	Auto-generated from C++ bindings
`RW16`	`<OBFormat.RW16: 33>`	33	Auto-generated from C++ bindings
`UNKNOWN_FORMAT`	`<OBFormat.UNKNOWN_FORMAT: -1>`	-1	Auto-generated from C++ bindings
`UYVY`	`<OBFormat.UYVY: 2>`	2	Auto-generated from C++ bindings
`Y10`	`<OBFormat.Y10: 10>`	10	Auto-generated from C++ bindings
`Y11`	`<OBFormat.Y11: 11>`	11	Auto-generated from C++ bindings
`Y12`	`<OBFormat.Y12: 12>`	12	Auto-generated from C++ bindings
`Y12C4`	`<OBFormat.Y12C4: 34>`	34	Auto-generated from C++ bindings
`Y14`	`<OBFormat.Y14: 24>`	24	Auto-generated from C++ bindings
`Y16`	`<OBFormat.Y16: 8>`	8	Auto-generated from C++ bindings
`Y8`	`<OBFormat.Y8: 9>`	9	Auto-generated from C++ bindings
`YUY2`	`<OBFormat.YUY2: 1>`	1	Auto-generated from C++ bindings
`YUYV`	`<OBFormat.YUYV: 0>`	0	Auto-generated from C++ bindings
`YV12`	`<OBFormat.YV12: 29>`	29	Auto-generated from C++ bindings
`Z16`	`<OBFormat.Z16: 28>`	28	Auto-generated from C++ bindings

6.3.4.4. OBMediaType

class pyorbbecsdk.OBMediaType

Bases: pybind11_object

OBMediaType Members
Name	C++ Binding Object	Value	Description
`ACCEL`	`<OBMediaType.ACCEL: 16>`	16	Auto-generated from C++ bindings
`CAMERA_PARAM`	`<OBMediaType.CAMERA_PARAM: 32>`	32	Auto-generated from C++ bindings
`COLOR`	`<OBMediaType.COLOR: 1>`	1	Auto-generated from C++ bindings
`DEPTH`	`<OBMediaType.DEPTH: 2>`	2	Auto-generated from C++ bindings
`DEVICE_INFO`	`<OBMediaType.DEVICE_INFO: 64>`	64	Auto-generated from C++ bindings
`GYRO`	`<OBMediaType.GYRO: 8>`	8	Auto-generated from C++ bindings
`IR`	`<OBMediaType.IR: 4>`	4	Auto-generated from C++ bindings
`LEFT_IR`	`<OBMediaType.LEFT_IR: 256>`	256	Auto-generated from C++ bindings
`RIGHT_IR`	`<OBMediaType.RIGHT_IR: 512>`	512	Auto-generated from C++ bindings
`STREAM_INFO`	`<OBMediaType.STREAM_INFO: 128>`	128	Auto-generated from C++ bindings

6.3.4.5. OBMediaState

class pyorbbecsdk.OBMediaState

Bases: pybind11_object

OBMediaState Members
Name	C++ Binding Object	Value	Description
`OB_MEDIA_BEGIN`	`<OBMediaState.OB_MEDIA_BEGIN: 0>`	0	Auto-generated from C++ bindings
`OB_MEDIA_END`	`<OBMediaState.OB_MEDIA_END: 3>`	3	Auto-generated from C++ bindings
`OB_MEDIA_PAUSE`	`<OBMediaState.OB_MEDIA_PAUSE: 1>`	1	Auto-generated from C++ bindings
`OB_MEDIA_RESUME`	`<OBMediaState.OB_MEDIA_RESUME: 2>`	2	Auto-generated from C++ bindings

6.3.4.6. OBPlaybackStatus

class pyorbbecsdk.OBPlaybackStatus

Bases: pybind11_object

OBPlaybackStatus Members
Name	C++ Binding Object	Value	Description
`COUNT`	`<OBPlaybackStatus.COUNT: 4>`	4	Auto-generated from C++ bindings
`PAUSED`	`<OBPlaybackStatus.PAUSED: 2>`	2	Auto-generated from C++ bindings
`PLAYING`	`<OBPlaybackStatus.PLAYING: 1>`	1	Auto-generated from C++ bindings
`STOPPED`	`<OBPlaybackStatus.STOPPED: 3>`	3	Auto-generated from C++ bindings
`UNKNOWN`	`<OBPlaybackStatus.UNKNOWN: 0>`	0	Auto-generated from C++ bindings

6.3.5. Constants

pyorbbecsdk.UNKNOWN = <OBPlaybackStatus.UNKNOWN: 0>

Members:

UNKNOWN

PLAYING

PAUSED

STOPPED

COUNT

pyorbbecsdk.PAUSED = <OBPlaybackStatus.PAUSED: 2>

Members:

UNKNOWN

PLAYING

PAUSED

STOPPED

COUNT

pyorbbecsdk.PLAYING = <OBPlaybackStatus.PLAYING: 1>

Members:

UNKNOWN

PLAYING

PAUSED

STOPPED

COUNT

pyorbbecsdk.STOPPED = <OBPlaybackStatus.STOPPED: 3>

Members:

UNKNOWN

PLAYING

PAUSED

STOPPED

COUNT

pyorbbecsdk.COUNT = <OBPlaybackStatus.COUNT: 4>

Members:

UNKNOWN

PLAYING

PAUSED

STOPPED

COUNT
